Brief Introduction to Dryer Machine:

Dryer machine is mainly used for drying materials with certain humidity or granularity in mineral processing, building materials, metallurgy, chemicals and other industries. Drying equipment has good adaptability to materials and it can be used for drying various materials; the equipment is simple and reliable to operate, so it is universally used.

Performance Characteristics of Drying Equipment:

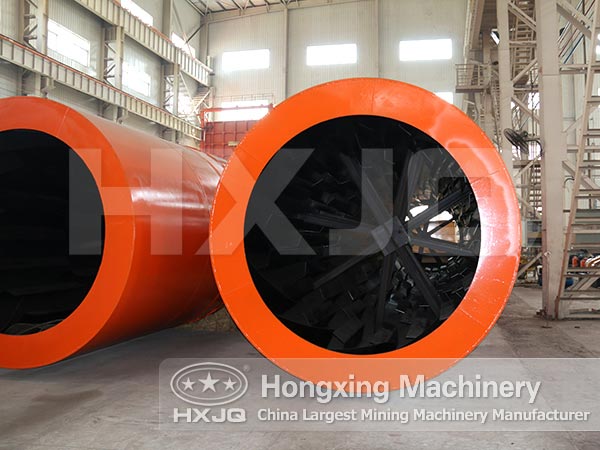

Hongxing dryer machine is mainly composed of rotary body, lifting plate, transmission device, supporting device and seal component. This new drying machine uses new lifting plate and has functions of guiding, current sharing, shedding, etc., which can scatter materials in the dryer body uniformly, so the materials can contact hot air completely and achieve the objective of full use of the thermal energy. China dryer has reasonable operating parameters, and its coal and power consumption is generally 10-15% lower than that of general dryer, and the output is increased more than 10-15% of that of general dryer, so it has been widely used in cement and mineral processing enterprises.

Dryer Machine

Working Principle of China Dryers:

First, the materials that are prepared to be dried are sent by the conveying equipment to the hopper, and the feeding machine inside the hopper will send the materials to the feeding end from which the materials will go into the dryer machine. The drum of the dryer machine slightly inclines upward, and the materials go into the drum from the higher end, and at the same time the heating media will go in the drum from the other end and form backward contact with the materials.

Dryer Machine

Since the drum is slightly slant, the materials will be dried indirectly or directly by the heating media during the moving process, and then the dried materials will be sent from the discharging end. At the same time, inside the drum there is equipped with shoveling plate which will shovel the materials and then put them down. In this process, since the contact surface of the materials and the air flow increases, the drying efficiency will be improved.

Parameters
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5
700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
Length
(m)
Shell
cubage
(m³)
Shell
obliquity
Lifting
blade
form
Highest
inlet air
temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
