Brief introduction to belt conveyor

Belt conveyor, also called convery belt, has large transportation amount, simple structure, easy maintenance, standardized parts, etc. It is widely used in mining, metallurgical, coal and other departments to transport loose materials or complete items;

according to the conveying process requirements, bucket hoist conveyor can deliver materials alone, and it can form a horizontal or inclined conveyor system if equipped with other equipment so that it can satisfy different requirements of production lines.

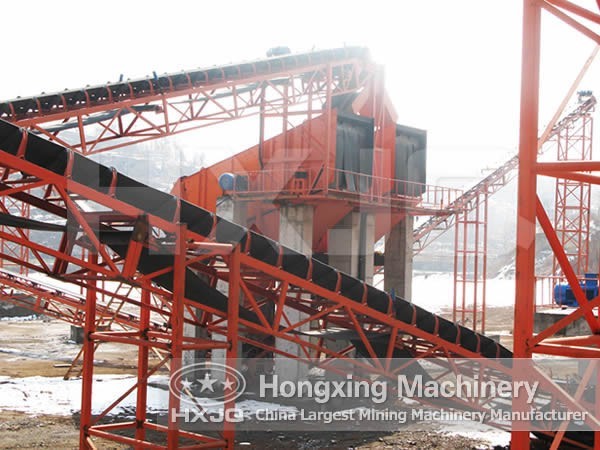

Belt Conveyor

Structure of convery belt

Conveyor belt is mainly composed of frame, transmission belt, belt roller, tensioning device, transmission device, etc. Frame is connected with high-quality steel plate, with certain inclination. Frame is equipped with belt roller, roller, etc. to drive and support conveyor belt.

Belt conveyor has two kinds of driving ways: gear motor drive and electric roller drive.
The conveyor can convey materials whose temperature is under 50 ℃ in environment with temperature between - 20 ℃ to + 40 ℃.

Advantages of convery belt

Simple structure; long conveying distance; wide application scope; strong adaptability to materials; high reliability; low energy consumption; high efficiency; low maintenance cost.

Henan Hongxing has many years of experience in research, production and sale in belt conveyor, screw conveyor, and other mining machinery; With professional technical team, we can provide with reliable equipment for wide customers!

Parameters
Belt width(mm) Conveying length(m)
Power(kw)
Conveying speed(m/s) Conveying amount(t/h)
400 ≤10
3
12-15
3-4
15-30
4-7.5
1.25-2.0 30-60
500 ≤10
3
12-15
4-5.5
15-30
5.5-7.5
1.25-2.0 40-80
650 ≤10
4
12-15
7.5
15-30
7.5-11
1.25-2.0 80-120
800 ≤10
4
12-15
7.5
15-30
7.5-15
1.25-2.0 120-200
1000 ≤10
5.5
10-20
7.5-11
20-40
11-22
1.25-2.0 200-320
1200 ≤10
7.5
10-20
7.5-15
20-40
15-30
1.25-2.0 290-480
1400 ≤10
11
10-20
15-22
<20-40
22-45
1.25-2.0 400-680
1600 ≤10
15
10-20
22-30
<20-50
30-75
1.25-2.0 600-1080
1800 ≤10
18.5
10-20
30-45
<20-50
45-110
1.0-2.0 200-1500
2000 ≤10
22
10-20
45-55
<20-40
55-132
1.0-2.0 1000-2000
2400 ≤10
30
10-20
55-75
<20-40
75-185
1.0-2.0 1500-3000
